Streaming Messages

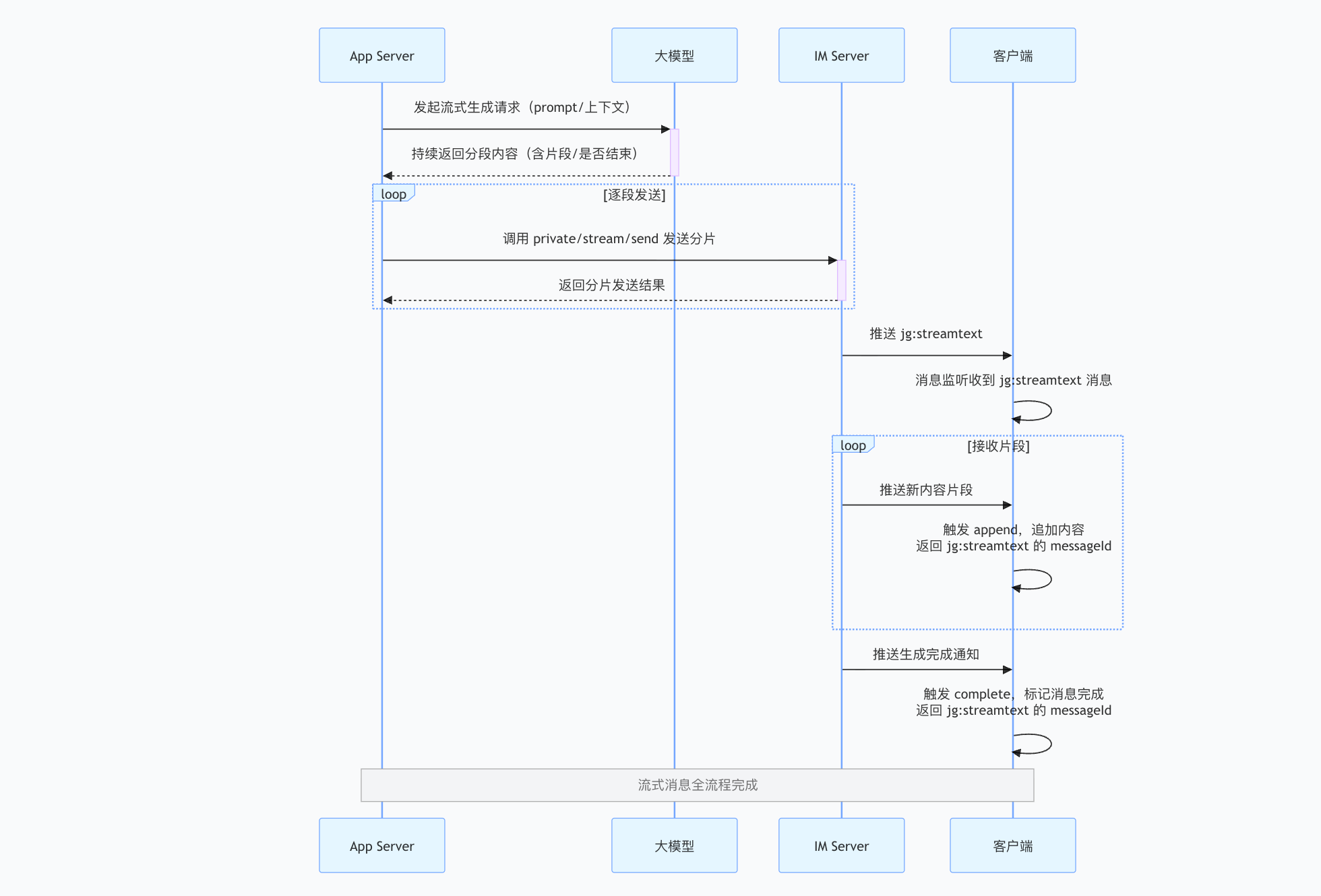

App Server requests generated content from a large language model: App Server sends a streaming generation request with the prompt and context. The model continuously returns content segments, each containing content and a completion indicator.

App Server sends segments: Based on the model output, App Server calls the IM Server SendStream API to send each segment to IM Server. Each call returns the segment delivery result.

IM pushes the initial message: when App Server calls SendStream with seq = 1 and is_finished = false, IM Server pushes a jg:streamtext message to clients. The client receives this streaming message through the message listener.

The client receives and appends segments: IM Server continuously pushes new content segments to clients. Each segment triggers an append event, which appends the content to the message and returns the messageId of jg:streamtext.

Completion notification: After generation finishes, App Server calls SendStream with seq set to the last segment number and is_finished = true. IM Server pushes a completion notification to clients, triggering the complete event.

No Special Application-Layer Handling Is Required for These Cases

1. Reconnection after a network outage: The SDK automatically delivers complete notifications for new segments missed during the outage to the application layer.

2. Process termination or browser closure after generation starts: When users return online, they can still receive complete generated content or segments still being generated.

3. Automatic synchronization of generated content across devices: For example, content generated by user A on iOS remains visible after signing in on Web; in-progress content supports synchronized updates.

4. Generated-content timeout: After App Server begins sending a streaming message, it is completed automatically if is_finished = true is not set within 10 minutes. Content may be incomplete.

5. Retrieving message history: Generated messages can be retrieved directly through the message history APIs on each client. Their content is already assembled completely, and the application can render them by message type.

Android
iOS
JavaScript
ReactNative

JIM.getInstance().getMessageManager().addListener("main", new IMessageManager.IMessageListener() {
    /// message-receive callback
    @Override
    public void onMessageReceive(Message message) {
        MessageContent content = message.getContent();
        if (content instanceof StreamTextMessage) {
            Log.d("TAG", "stream message did receive, content is " + ((StreamTextMessage) content).getContent());
        }
    }
}

JIM.getInstance().getMessageManager().addStreamMessageListener("main", new IMessageManager.IStreamMessageListener() {
    @Override
    public void onStreamTextMessageAppend(String messageId, String content) {
        // messageId: ID of the corresponding streaming message
        // content: content appended by this chunk; append content to the end of StreamTextMessage.content in the UI
    }

    @Override
    public void onStreamTextMessageComplete(Message message) {
        // message: complete streaming-message object
    }
});

// message-receive delegate
[JIM.shared.messageManager addDelegate:self];
//streaming-message delegate
[JIM.shared.messageManager addStreamMessageDelegate:self];

#pragma mark - JMessageDelegate
/// message-receive callback
- (void)messageDidReceive:(JMessage *)message {
    JMessageContent *content = message.content;
    if ([content isKindOfClass:[JStreamTextMessage class]]) {
        NSLog(@"stream message did receive, content is %@", ((JStreamTextMessage *)content).content);
    }
}

#pragma mark - JStreamMessageDelegate
- (void)streamTextMessageDidAppend:(NSString *)messageId content:(NSString *)content {
    // messageId: ID of the corresponding streaming message
    // content: content appended by this chunk; append content to the end of JStreamTextMessage.content in the UI
}

- (void)streamTextMessageDidComplete:(JMessage *)message {
    // message: complete streaming-message object
}

let { Event, MessageType } = JIM;

// Register this only once globally, alongside the message listener. It is shown here for readability.

jim.on(Event.MESSAGE_RECEIVED, (message) => {
  if(message.name == MessageType.STREAM_TEXT){
    console.log('Received a streaming message', message)
  }
  //... other message types
});

jim.on(Event.STREAM_APPENDED, (notify) => {
  // notify => { content: 'new content chunk', messageId: 'messageId of MessageType.STREAM_TEXT' }
  console.log('Event.STREAM_APPENDED', notify)
});

jim.on(Event.STREAM_COMPLETED, (notify) => {
  // notify => { content: 'complete generated content', messageId: 'MessageType.STREAM_TEXT' }
  console.log('Event.STREAM_COMPLETED', notify)
});

Streaming messages are intended for AI assistants and similar scenarios, and support real-time streamed text output. To implement a typing effect, place StreamTextMessageContent messages in a queue. After enqueueing, append content continuously through append and dequeue it character by character to create the typing effect.

When a received message is an unfinished jg:streamtext streaming message
Subsequent streaming messages trigger onStreamTextMessageAppend append notifications
Completion triggers onStreamTextMessageComplete


// message-receive listener
JuggleIM.addMessageListener('MessageListScreen', {
      onMessageReceive: (message: Message) => {
}})


/**
 * streaming-message listener
 * Listens for streaming-message append and completion events
 */
const unsubscribe = JuggleIM.addStreamMessageListener('stream_listener_key', {
  /**
   * callback triggered when a streaming-message chunk is appended
   * @param {string} messageId - streaming-message ID
   * @param {string} content - content appended by this chunk; append content to the end of StreamTextMessage.content in the UI
   */
  onStreamTextMessageAppend: (messageId, content) => {
    console.log('Stream message append:', messageId, content);
    // Append content in the UI to create a typewriter effect
  },

  /**
   * callback triggered when a streaming message is complete
   * @param {Message} message - completed streaming message
   */
  onStreamTextMessageComplete: (message) => {
    console.log('Stream message complete:', message);
    // Update the UI to display the complete message
  }
});

// remove the listener
// unsubscribe();

/**
 * streaming-text message content: jg:streamtext
 * Streaming messages are used for AI assistants and similar scenarios; content is appended in chunks
 * @property {string} content - message content
 * @property {boolean} isFinished - whether complete
 * @property {number} seq - streaming-message sequence number
 */
export class StreamTextMessageContent extends MessageContent {
    contentType: string;
    content: string;
    isFinished: boolean;
    seq: number;
}
